SPECIFICATIONS

Application: Distributed power station

Brand Name: DYJH

Certificate: CE/RHOS/IEC

Color: White

Covering Material: Aluminum alloy + spray

Features: SMA Foundry, high efficiency, high current

Input Voltage: 230V

Inverter Efficiency: 90%

Inverter type: Hybrid Inverter

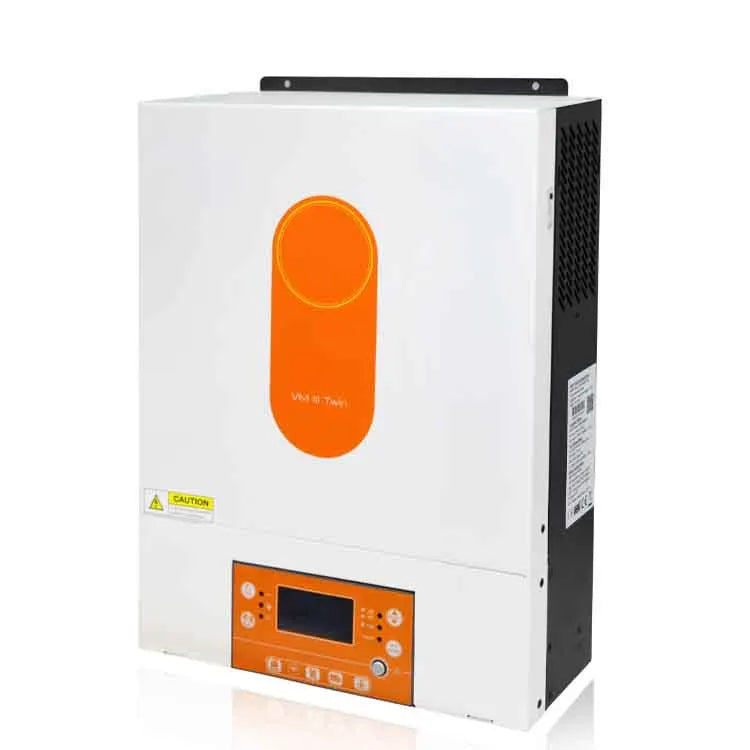

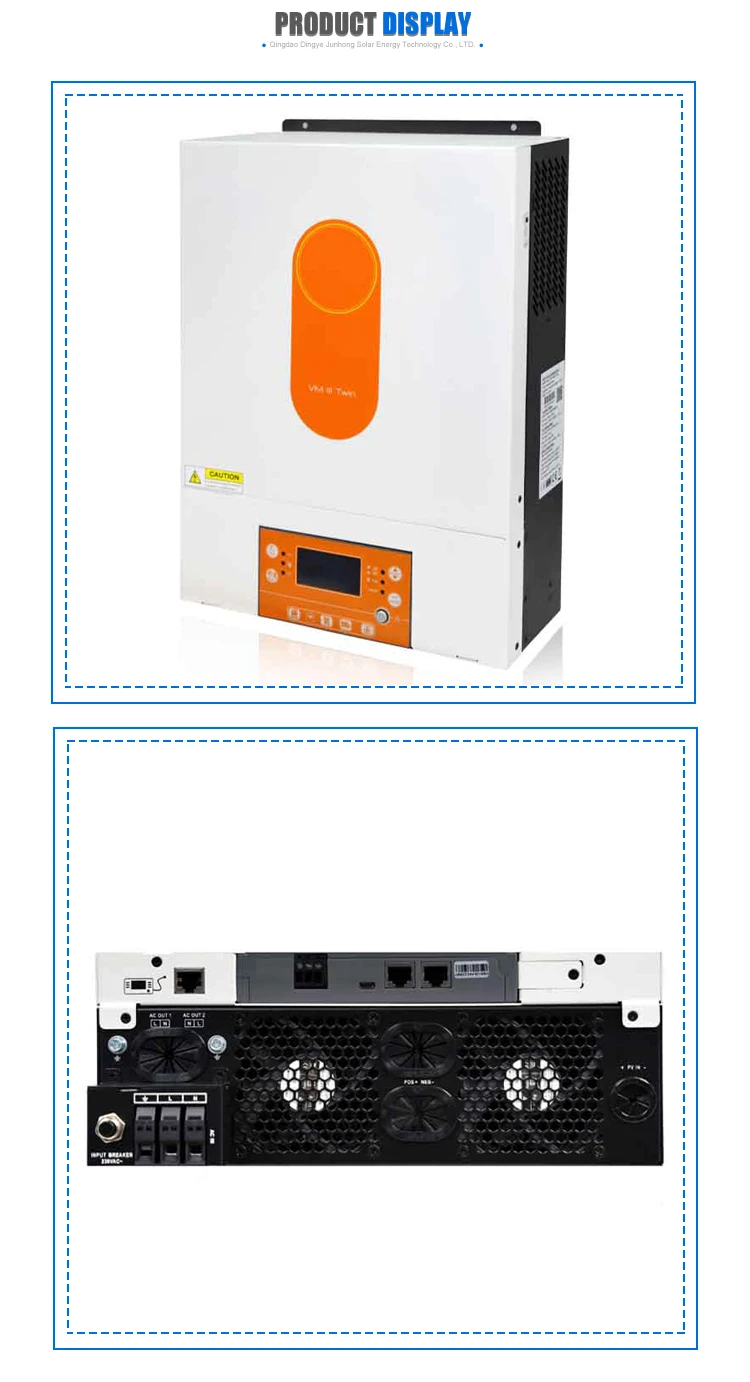

Model Number: DYJH-VMIII-TWIN-4KW

Output Frequency: 50Hz/ 60Hz

Output Type: Pure sine wave

Output Voltage: 230V

Package: Carton

Place of Origin: Guangdong, China

Product Name: DYJH-VMIII-TWIN-4KW

RATED POWER: 4000W

Size: 49*39*22cm

Type: DC/AC Inverters

Warranty: 12 months

Weight: 10kg

Model	TWIN 4K	TWIN 6K
Rated Power	4000VA/4000W	6000VA/6000W
INPUT
Voltage	230VAC
select Voltage range	170-280VAC(For Personal Computers),90-280VAC(For Home Appliances)
Frequency	50HZ/60HZ(Auto sensing)
OUTPUT
AC Voltae Regulation(Batt Mode)	230VAC±10%
Surge Power	8000VA	12000VA
Efficiency(Paek)	90%-93%	90%-93%
Transfer Time	10ms(For Personal Computers),20ms(For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24VDC	48VDC
Floating Charging Voltage	27VDC	54VDC
Overcharging Protection	33VDC	63VDC
SOLAR CHARGER AND AC CHARGER
Solar Charger Type	MPPT	MPPT
Maximum PV Array Power	5000W	6000W
MPPT Range@operating Voltage	60-450VDC
Max, PV Array Open Circuit Voltage	500VDC
Max. Solar Charge Current	120A	120A
Max. AC Charge Current	100A	100A
Max,. Charge Current	120A	120A
PHYSICAL
Dimension DXWXH(mm)	115x300x435(packing:220*390*490cm)
Net Weight(kgs)	9kg	10kg

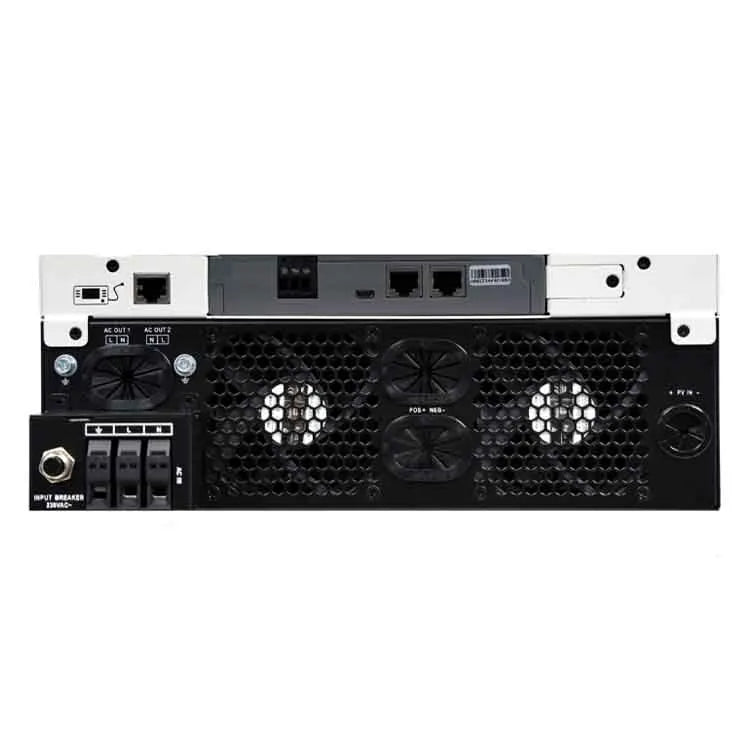

Communication Interface	USB/RS485/WIFI/Dry-contact)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10℃—50℃
Storage Temperature	-15℃—60℃
